Multi-Function

High-definition
Screen
High-definition
Binocular Camera
50,000
Faces
1 Million
Attendance Logs
LINUX
System
Binocular Liveness
Detection
1:N/1:1
Comparison
High Speed
Recognition
Wide Dynamic Strong
Light Recognition
Voice
Remind
QR Code
Identification (Optional)
Palm Vein Recognition
(Optional)
Video
Intercom
Lift
Management
Cloud
Management
Fingerprint
Identification
Remote
Upgrade
SDK
Integration
Multi-communication
Mode
Free Docking to
Other Platforms

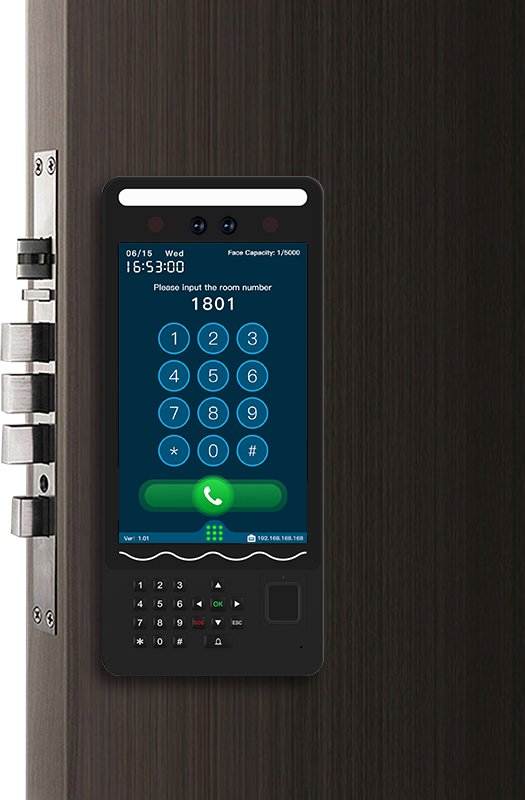

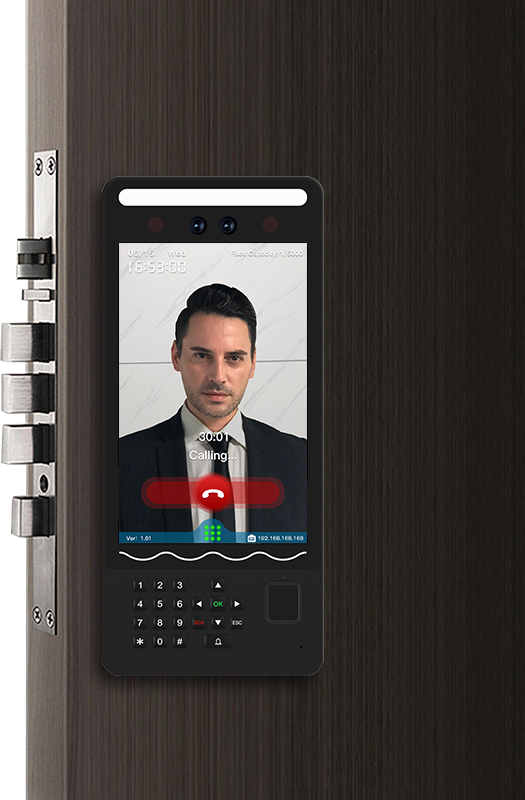

Video Intercom

Support Direct Calling and
Dial-up Calling Modes

CS System

Desktop Software Management

Support Personnel Management,

Access Control, Time Attendance,

Elevator Control, Guard Tour,

Meeting Management, Vistor Management, etc

Support ACCESS and SQL Database

BS System

Cloud Software Management

Device actively communicates with the server

Our cloud software supports computer, iPad, and mobile versions. It can be

used by installing apps or directly logging into the system through a browser

SV826 Series

AI Face Dedicated CPU

Support Dual-Core 1.5GHz, 1.5 Tops NPU

1GB DDR3 Memory

Face, Finerprint, Palm Vein, QR Code, Password,

Mifare Card, Video Data and Other Dedicated AI Chips.

8-inch
HD Display Screen

Support 800x1280 ultra high definition resolution

Provides 500 lumens of brightness, with true color LCD glass

Images can be seen clearly both indoor and outdoor

Reading Card Function Can be Customized

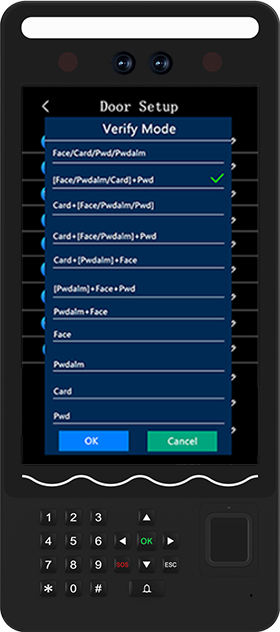

13 Combination Authentication Modes

Selecting the Following Confirmation Modes As Needed

Fingerprint Identification

Using High-resolution Texture Recognition Lenses

Built in liveness detecting sensor, supports massive

fingerprint authentication and liveness judgment

GC2093 + GC2053

Binocular Camera

Adopting Dual 2 Megapixel True Color COMS Chips

More Outstanding in Facial Recognition

Palm Vein Recognition, and QR Code Recognition

Faster speed, clearer and smoother images

Simultaneously using 3-frame level

strong backlight recognition technology

Under various ultra strong and low light conditions

it can still be clearly displayed

Adopt professional glass green filter
to make the color more outstanding

Wide Dynamic Strong
Light Suppression Technology

Capable of adapting to various complex lighting

environments such as backlight and strong light,

to ensure high-precision facial recognition rates

in different scenes and environments

Support Wide Dynamic
Technology at Night Support Wide Dynamic
Technology at Strong Light Not Support Wide
Dynamic Technology

Large Data Capacity

50,000 Users50,000 Faces, 10,000 Palm Veins, 10,000 Fingerprints, 50,000 Cards, 50,000 QR Codes, 50,000 Passwords
可扩容至100000用户
1 Million Access Records and Attendance Records

TCP/IP+WIFI+4G (Optional)

Three Communication Modes

4G Communication Can be Customized

The recommended communication distance between TCP/IP

and the switch is within 80 meters, and the WIFI distance is within 20 meters.

HTTP+MQTT+WebSocket+TCP+UDP+WEB

Multiple Communication Protocols

Support multiple communication protocols,

including HTTP, MQTT, WebSocket, TCP, UDP and WEB

Support WEB Management

Can directly open the WEB page through the IP address;

support personnel, department, equipment parameters,

record managements and other operation settings

Reading Card Technology
(Mifare Card)

13.56MHz supports not only Mifare cards, but also NFC cards,

NFC phones, CPU cards

(Can set the card type and whether to enable
encryption and card control technology)

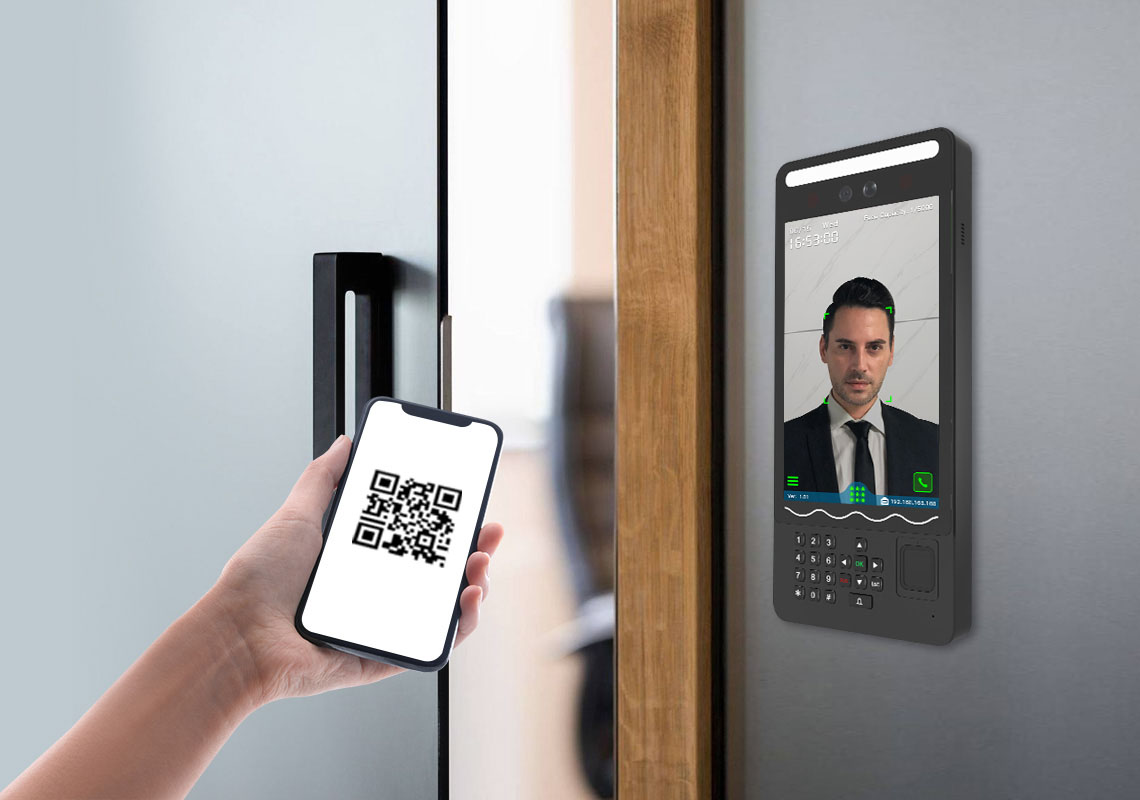

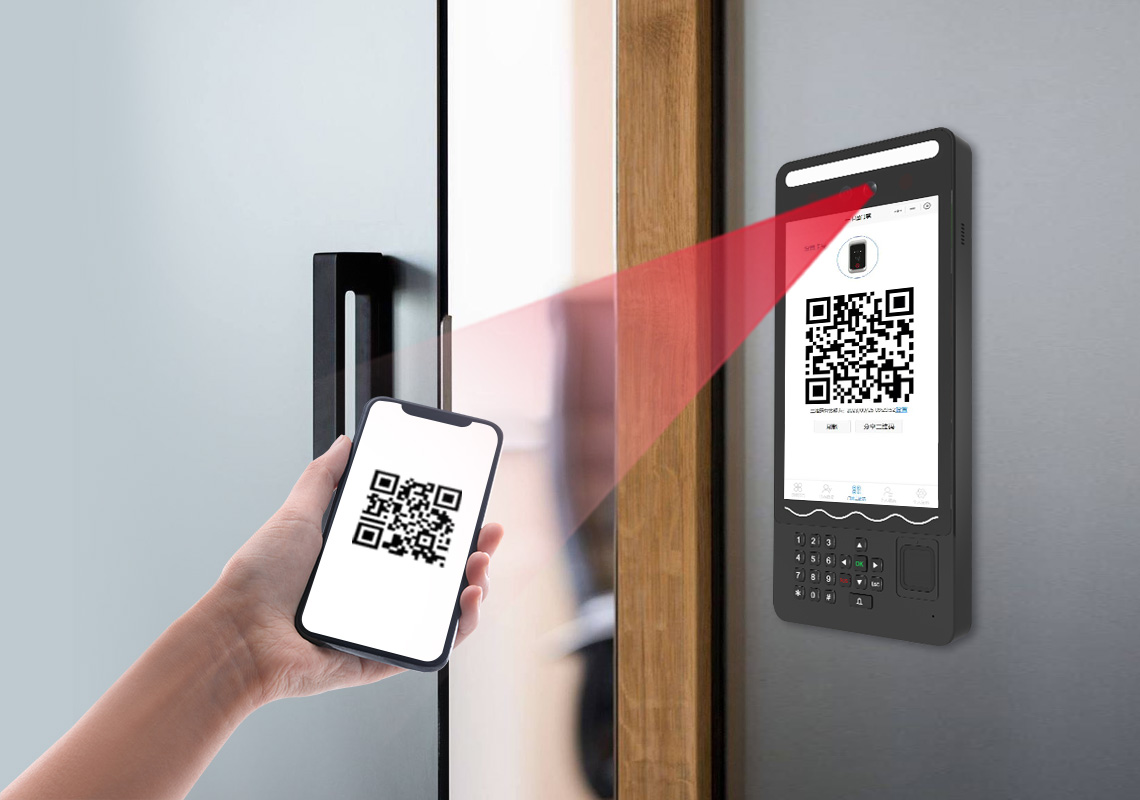

QR Code Recognition

Utilizing existing color high-definition cameras

combined with rolling QR code algorithms, to achieve

QR code recognition and authentication

QR code door opening, QR code attendance,

QR code visitor authentication and QR code to take elevator

Face

Recognition Technology

Support OTA Upgrade and
USB Flash Drive Upgrade

Device Continuously Upgrades to Enhance Application Value

Ver:1.0

Ver:2.0

Ver:3.0

Ver:4.0

Ver:5.0

Ver:6.0

Linux 4.0.9 Embedded

System Advantages

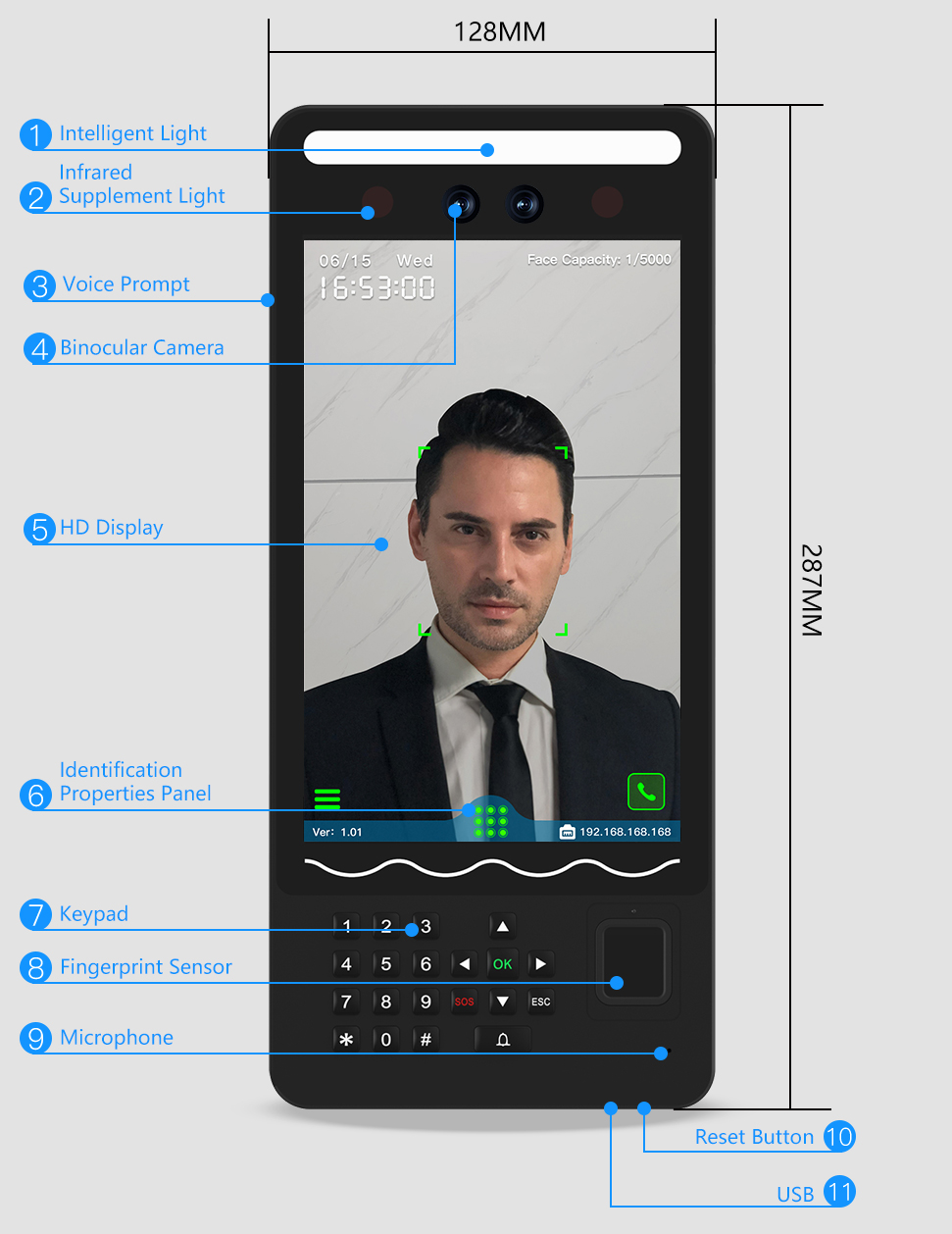

Appearance Diagram

APPEARANCE DESCRIPTION

Technical Parameters

Main Purpose:

Access control, Time Attendance
Working Voltage:

DC12V（9 ~ 14V）
Working Current:

<2000mA
Working Environment:

Temperature: -30℃～65℃;
Humidity:

10 ~ 90%，RH
Operating System:

LINUX System
User Capacity:

50,000 Users, 50,000 Faces, 50,000 QR Codes, 50,000 Cards, 50,000 Passwords; 10,000 Fingerprints, 10,000 Palms;
Record Capacity:

1 Million Records, 50,000 Record Photos, 10,000 System Records
Recognition Distance:

0.3-3m
Recognition Speed:

< 0.3S
Material:

Metal Housing+Tempered Glass Panel
Size:

215×112×25mm
Wieght:

0.6KG

Algorithm Support:

Face Recognition, Fingerprint Algorithm, Palm Vein Recognition, QR Code Recognition
Management Mode:

Touch Screen, Desktop Software, Cloud Software, Mobile App
Registration Mode:

Face, Fingerprint, Palm Vein, QR Code, Password, Card (Dual Frequency Card Optional)
Comparison Mode:

1:N/1:1
Firmware Upgrade:

Support Software OTA Upgrade or USB Drive Upgrade
Camera:

Wide Dynamic Binocular 2 Megapixel HD Camera
Display Screen:

8-inch ISP Full View HD Screen
Storage Capacity:

Memory 1GB DDR3, Storage 8GB EMMC
Communication Interface:

TCP/IP、WIFI、4G(Optional)、 Wiegand26 / 34 / 66
Other Interfaces:

Exit Button x 1, Door Sensor x 1, Fire Alarm Input x 1, Alarm Output x 1, Wiegand Input x 1, Wiegand Output x 1, Lock Control x 1, USB x 1, RS485 x 1

FC-8290

Dynamic Face Recognition
Access Control Terminal

Multi-Function

Video Intercom

Support Direct Calling and
Dial-up Calling Modes

CS System

BS System

AI Face Dedicated CPU

8-inch
HD Display Screen

13 Combination Authentication Modes

Fingerprint Identification

Binocular Camera

Wide Dynamic Strong
Light Suppression Technology

Large Data Capacity

TCP/IP+WIFI+4G (Optional)

Three Communication Modes

HTTP+MQTT+WebSocket+TCP+UDP+WEB

Multiple Communication Protocols

Support WEB Management

Reading Card Technology
(Mifare Card)

QR Code Recognition

Face

Recognition Technology

Support OTA Upgrade and
USB Flash Drive Upgrade

Linux 4.0.9 Embedded

System Advantages

Appearance Diagram

Technical Parameters

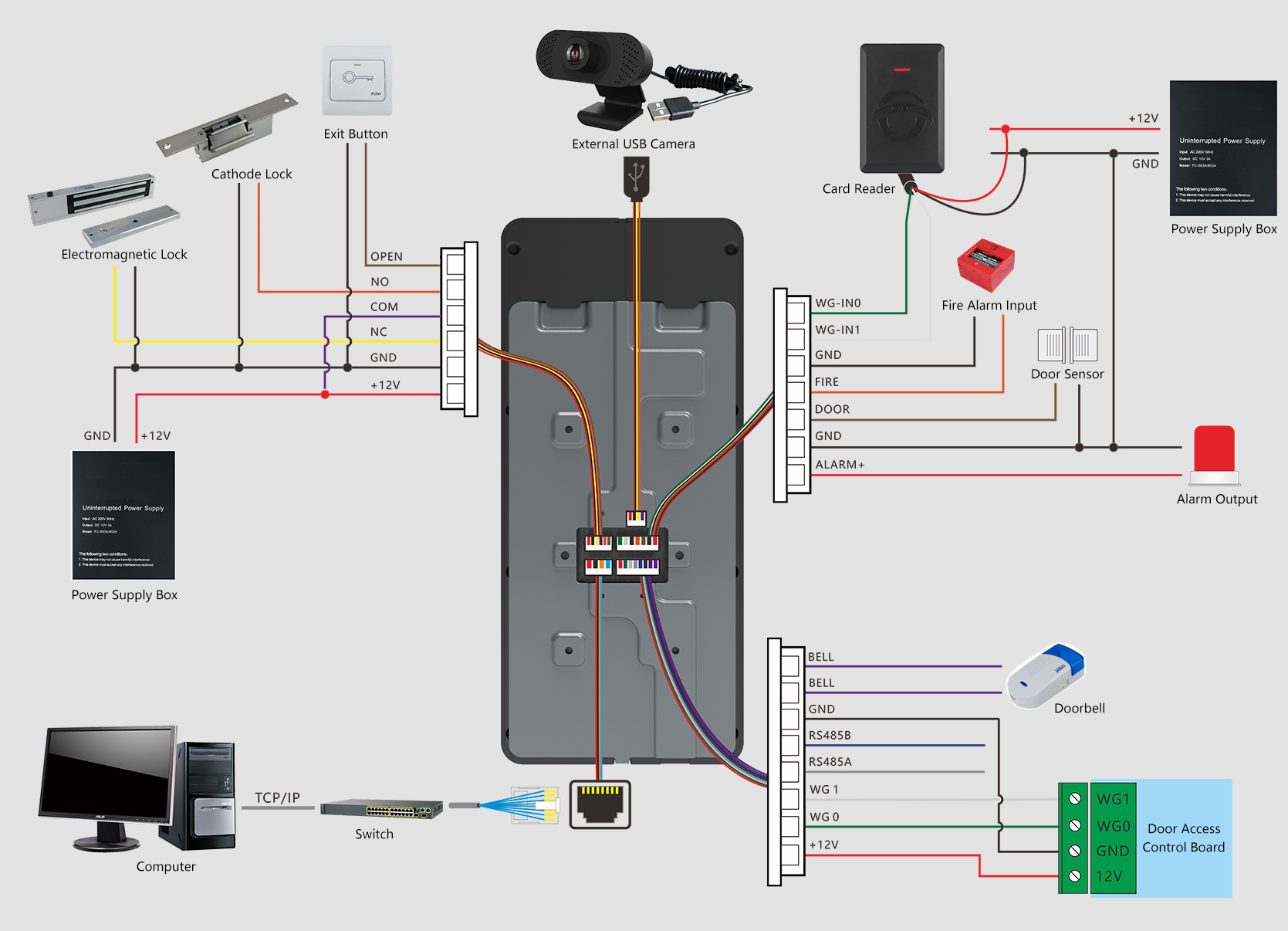

Wiring Diagram
